Product Description

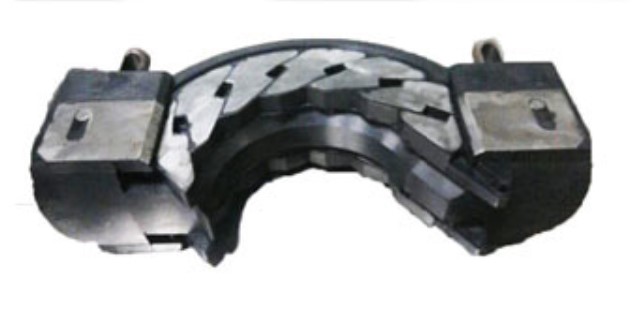

The Variable Bore Ram (VBR) Packer is designed to fit onto the maximum specification of ordinary ram blocks (e.g., a 5″-5 1/2″ packer is installed on a 5 1/2″ ram block). This allows the VBR packer to seal multiple pipe sizes within its specified diameter range.

The innovative design includes:

• Small Inserts: Located in the center, which slide outward as the pipe diameter increases.
• Big Insert: Fan-shaped components that slide inward or outward to accommodate smaller or larger pipe sizes, respectively.

Key Features

1. Compatibility:

   • The VBR packer is fully compatible with existing well control BOP ordinary ram blocks.
   • It can be installed on available ram blocks without requiring additional modifications.

2. Versatility:

   • A single VBR packer can seal various pipe sizes within a specific range.
   • For example, the 3 1/2″–5″ VBR packer installed on a 5″ ram block can seal on:
     • 3 1/2″, 4″, 4 1/2″, and 5″ drill pipes.

3. Cost-Effectiveness:

   • Reduces the need to stock and switch between multiple ordinary ram packers and blocks.
   • Minimizes storage requirements and lowers manpower, material, and financial costs.

4. Operational Efficiency:

   • Speeds up drilling operations by simplifying ram assembly changes.
   • Significantly reduces the risk associated with well control during ram replacements.
