API Flanges - Tees & Crosses

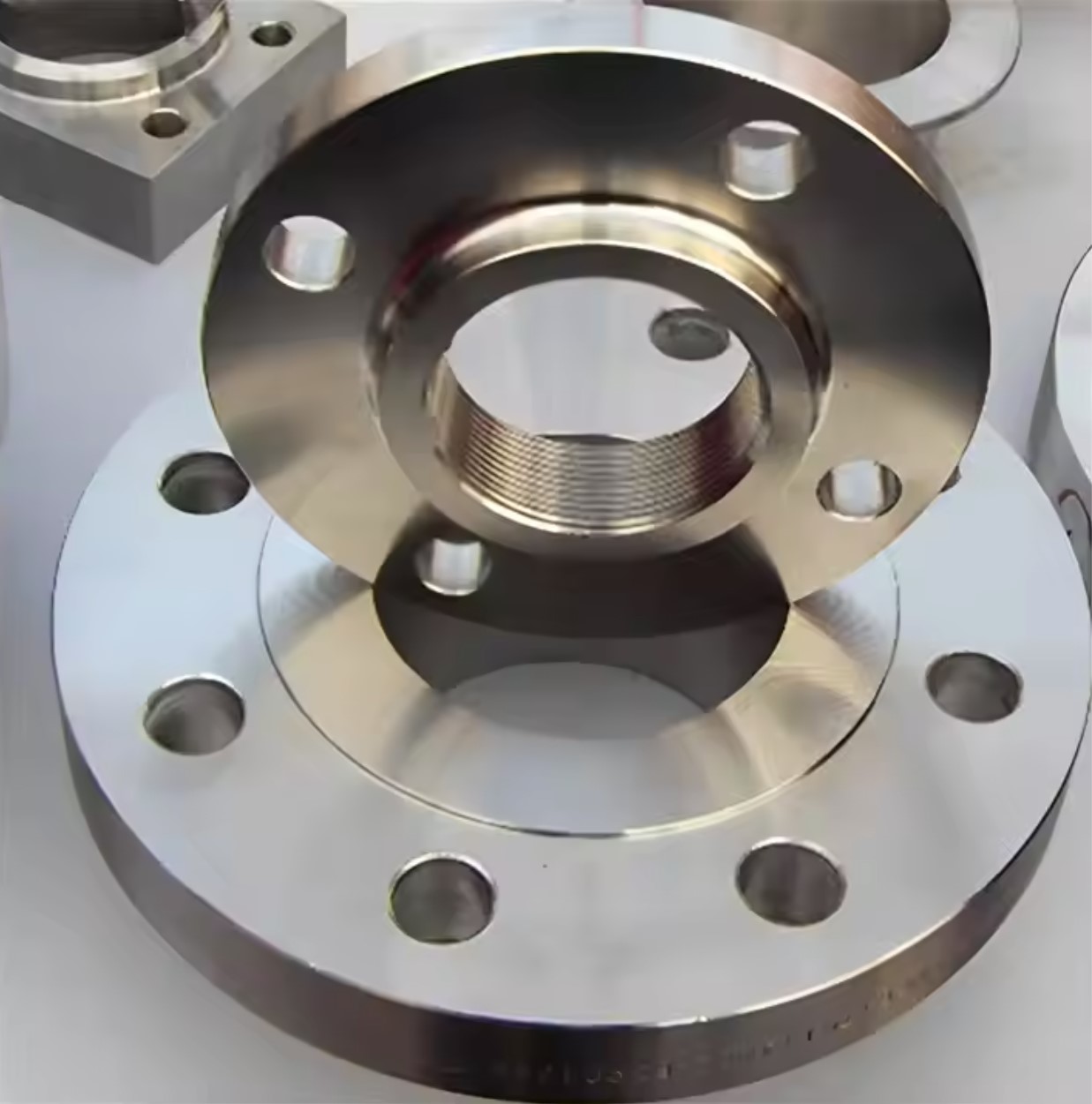

API Flanges
High-Performance Solutions for Demanding Environments
At Pacific Oilfield Engineering (POE), we supply API flanges engineered to withstand the high pressures and temperatures of oil and gas operations. Designed to meet API 6A specifications, our flanges ensure reliability in critical applications like refineries, petrochemical plants, and heavy oil systems.
- Superior Pressure Tolerance: Handles higher-rated operating pressures than ANSI/ASME flanges.
- Durability: Resists corrosion, pitting, and cracking in harsh environments.
- Compliance: Manufactured for maximum safety and performance under API standards.
Contact us to discuss your requirements.

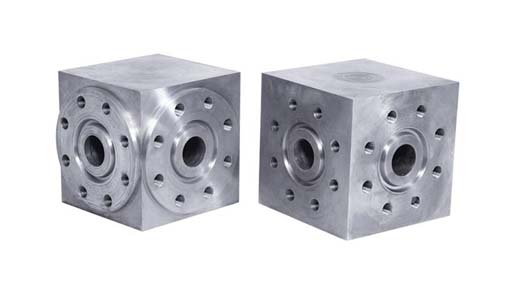

studded tees & crosses
Studded Tees and Crosses are critical components in Wellhead Assemblies and Christmas Trees, providing durable and reliable connections where angled flow paths are required.
- Application: Designed for integration on the X-mas Tree, enabling efficient flow direction and connection management.
- Construction: Precision-engineered from solid metal blocks to ensure strength, reliability, and durability in high-pressure environments.
- Compliance: Boundary dimensions, including bore and centerline-to-face measurements, conform to API 6A standards.
- Configurations: Available in common designs including:
- 4-way, 5-way, and 6-way crosses
- Ells and tees
- Pressure Ratings: Suitable for pressure ranges from 2,000 PSI to 20,000 PSI, ensuring performance in the most demanding oilfield applications.
Built to meet rigorous industry standards, our Studded Tees and Crosses deliver unmatched quality and performance, making them an essential part of your wellhead and pressure control systems.
| Specification | Details |
|---|---|
|
Standard Carried |
API Spec 6A, NACE-MR0175 |
|
Nominal Bore |
2 1/16 in, 2 9/16 in, 3 1/8 in, 3 1/16 in, 4 1/16 in |
|
Rated Working Pressure |
2,000 psi ~ 20,000 psi (14 MPa ~ 140 MPa) |
|
Material Class |
AA, BB, CC, DD, EE, FF |
|
Material |
AISI 4130 Alloy or AISI 410 Stainless Steel |
|
Connection Type |
Flanged or Studded |
|
Temperature Class |
L, P, R, S, T, U, V |
|
Product Specification Level |
PSL1 – PSL4 |
|
Performance Requirement |
PR1, PR2 |
|
Application |
Wellhead Assembly & Christmas Tree |
